Drag Object on Canvas Spark AR Studio

Drag 2D Object: Spark AR Tutorial

How to drag 2D Object in Spark AR Studio

This is a patch tutorial to learn how to drag 2D object Spark AR Studio using the Screen Pan Interaction. Screen Pan can tell us the 2D position of our moving touch location. We could use another touch Interaction Patch, but since we want to drag, Screen Pan can help.


Scene Setup

Drag 2D Object Spark AR Studio

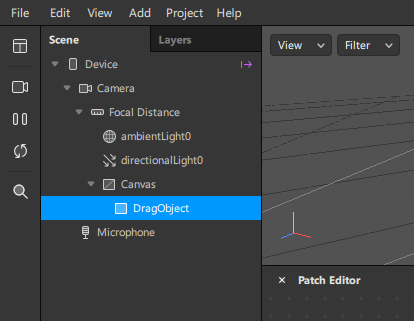

Add a rectangle as child (below) the Canvas object.
  1. Add a Canvas object to the Scene panel on the left. The Canvas object is a container for laying out 2D objects and making them responsive to the size of the screen.
  2. Add a Rectangle to the scene as a child (below) the Canvas. This is going to be our drag object. I named it DragObject.
    • Hot Tip: adding a Rectangle before the Canvas will automatically create a Canvas.
  3. Add the DragObject Position property to the Patch Editor by selecting the little arrow next to it’s Position in the Properties panel on the right.
  4. Device: drag it from the Scene panel on the left side into the Patch Editor to access Device properties like screen size. This will give the Patch Editor access to device specific information.

The Drag 2D Object Patch

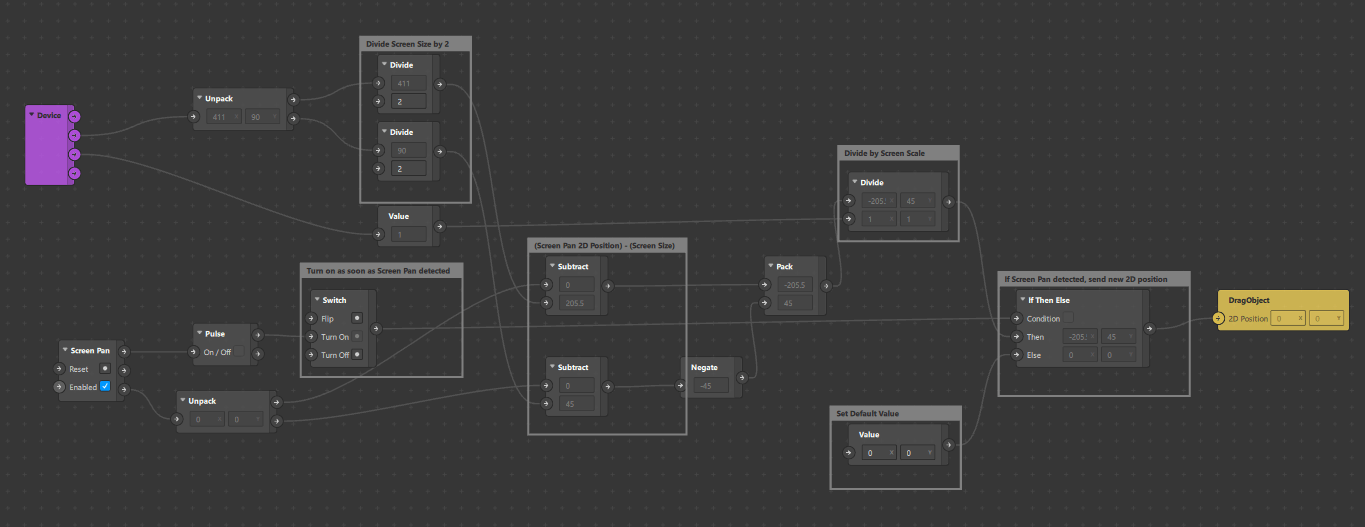

Here is what the completed drag 2D object patch looks like.

Drag 2D Object Spark AR Studio Patch
Patch for dragging 2D object on Canvas. The DragObject will follow the Screen Pan 2D position in this example.

About This Patch

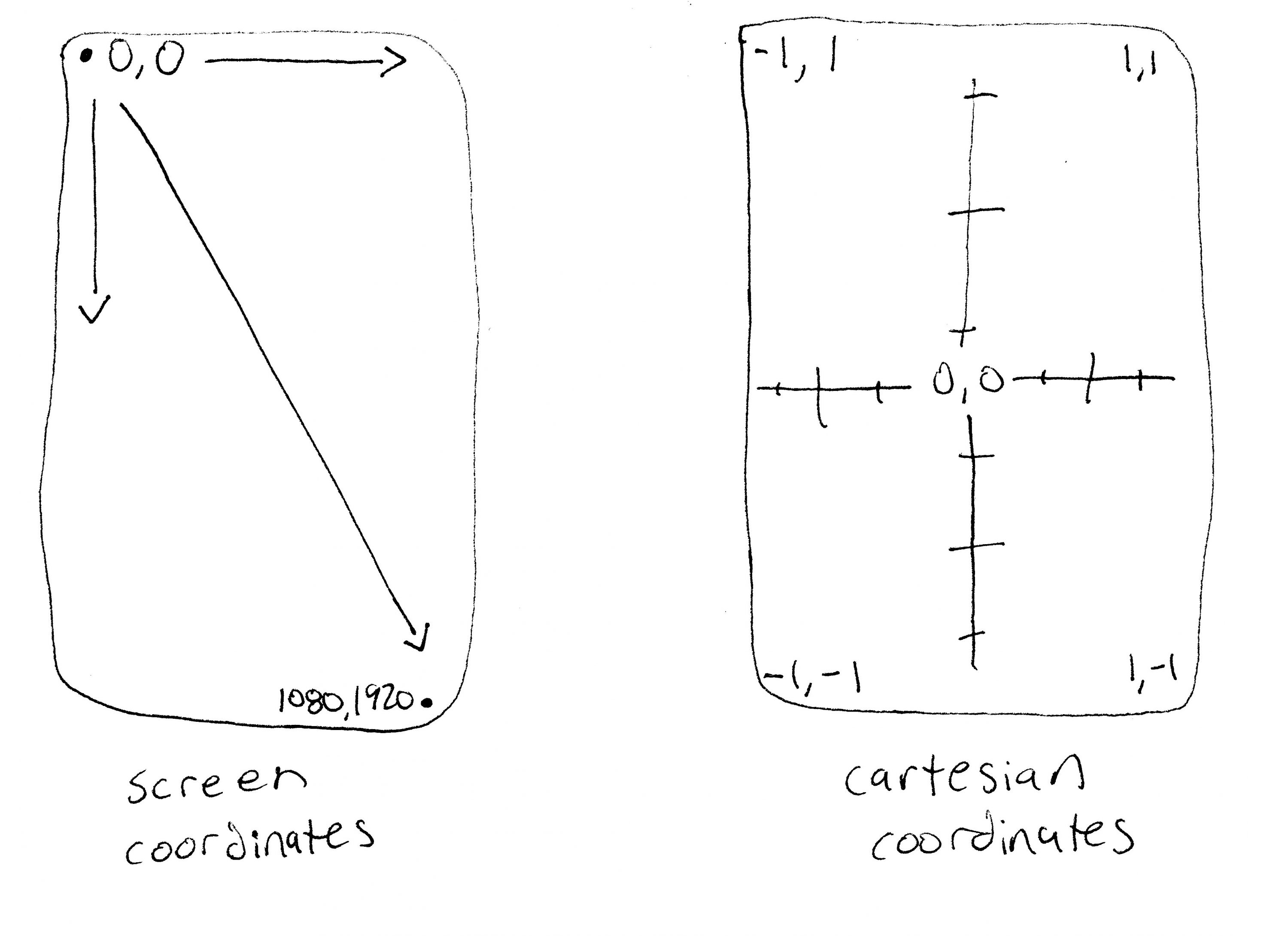

Objects on the Canvas are positioned in Cartesian coordinate space.

Screen Pan touch location is measured in Screen coordinate space.

Drag 2D Object: Spark AR Tutorial 1
Screen Coordinates and Cartesian Coordinates

In order to accurately drag a 2D object on the Canvas, we need to convert the Screen Pan 2D position to match the Cartesian coordinate of the DragObject. We need information from Device and Screen Pan to achieve this.

Get Screen Size

  • Device can tell us the dimensions of the screen specific to the device using the effect.
  • Unpack the Screen Size values to view the screen size. If you change the simulator device in Spark AR Studio, you will see these values change.

Get Screen Pan

  • Screen Pan has a state, which can be used to trigger a change in the default value set when the effect loads.
  • Unpack the Screen Pan 2D position to view where the touch is happening in Screen coordinate space.

Convert Screen Coordinates to Cartesian Coordinates

To convert the Screen Pan 2D position values to Cartesian we will run the screen information through a few Math patches. The formula to convert Screen Coordinates to Cartesian Coordinates is:

CartesianX = (ScreenPanX) – (ScreenWidth / 2) / ScreenScale

CartesianY = -(ScreenPanY) + (ScreenHeight / 2) / ScreenScale

Happy dragging!

If this patch was helpful, please leave a comment or check out other useful patches. Thanks.
